Create Custom Chart​

Here you can create group charts using sensors from multiple devices.

1. Create a Chart and Configure the X-Axis

  1. Go to the Ontoto Web Portal.

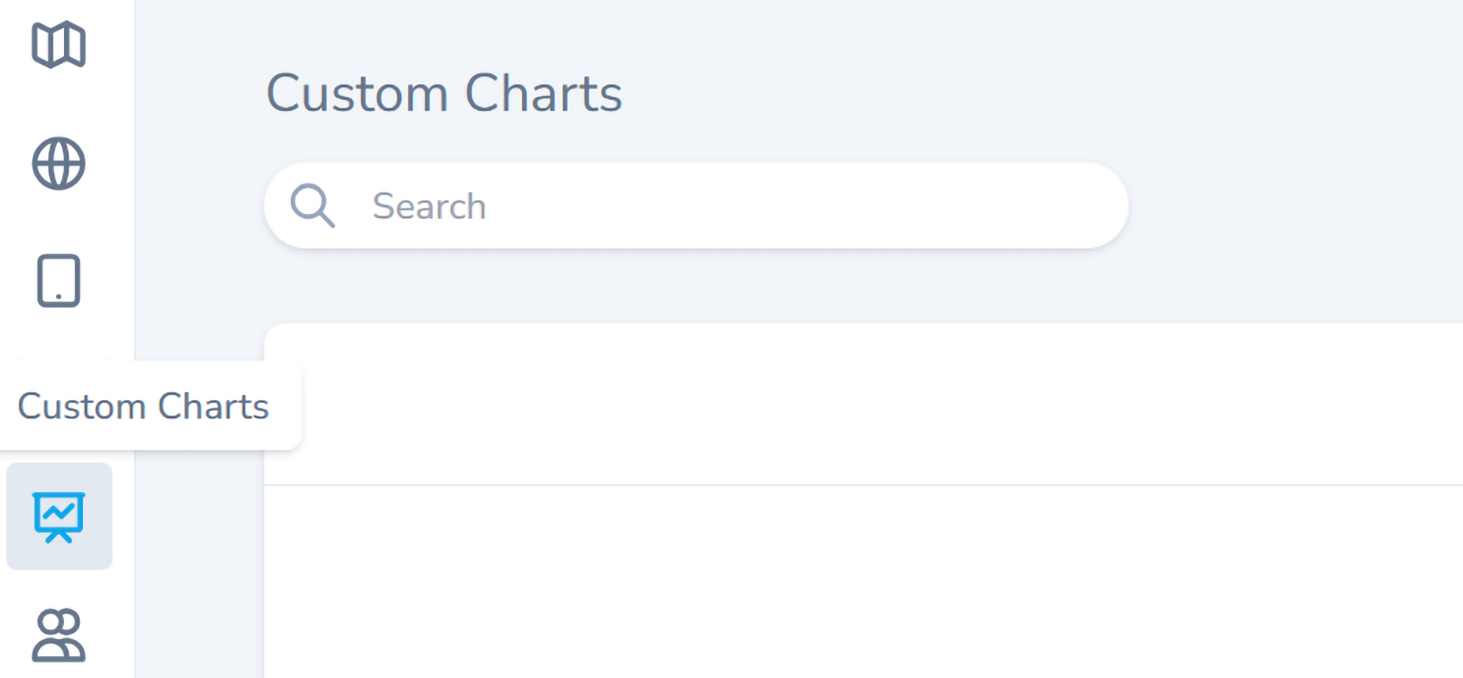

  2. Click on Custom Charts in the menu bar.
  3. Click on Create Custom Chart.
  4. Enter a chart name.
  5. Click on Create Custom Chart X-Axis.
  6. Enter an X-axis name and select a start date.
  7. Click on Create Custom Chart.

2. Create Custom Chart Y-Axis

  1. Click on Create Custom Chart Y-Axis.
  2. Enter a Y-axis name and choose a position.
  3. Click on Create Custom Chart Y-Axis.

3. Create Custom Chart Series

  1. Click on Create Custom Chart Series.
  2. Enter a series name.
  3. Select device, sensor, X-axis, Y-axis, color, and chart type.
  4. Enable EMA (Exponential Moving Average) for trend analysis over time and Spline (curved line) if preferred.
  5. Click on Create Custom Chart Series.

You can create multiple Y-axes and series within a custom chart.

Note: You can create multiple Y-axes and series within a custom chart.

4. View Custom Chart

  1. Click on Custom Charts in the menu bar to get all custom charts.
  2. Click on View Custom Chart to view a specific custom chart.
  3. Click the Series Name to hide or show the view.
  4. Click on the Save as Image icon located in the top right corner to download the chart as an image.
  5. Click the Zoom icon in the top right corner to zoom in on the data, and click Zoom Reset to revert to the default view.
  6. Click on the Data View icon located in the top right corner to see the data in tabular format.
  7. Drag the Date Slider from the sides to choose a particular period.
