Devices

Here you will be able to see all your devices which have been configured via the Ontoto Connect App during device installation. You can monitor the status of your base stations and battery, view the data, edit info, and update the configuration of your device.

Using Create Virtual Sensor the raw sensor readings can be post-processed to obtain derived parameters such as static water level, vibrating wire pressure, etc for the corresponding data logger.

Terminology for Device Status
ActiveThe data logger is transmitting data.
Data FaultThe data logger is transmitting data however with an issue such as sensor failure due to connectivity or damage.
No Recent DataThe data logger is transmitting without data due to issues such as sensor failure caused by connectivity or damage.
InactiveThe data logger has not transmitted data for two consecutive transmission periods due to issues such as poor network connectivity, battery failure, network failure, water damage, etc.
TerminatedThe data logger has been terminated.

1. View Your Ontoto Device

  1. Go to the Ontoto Web Portal.

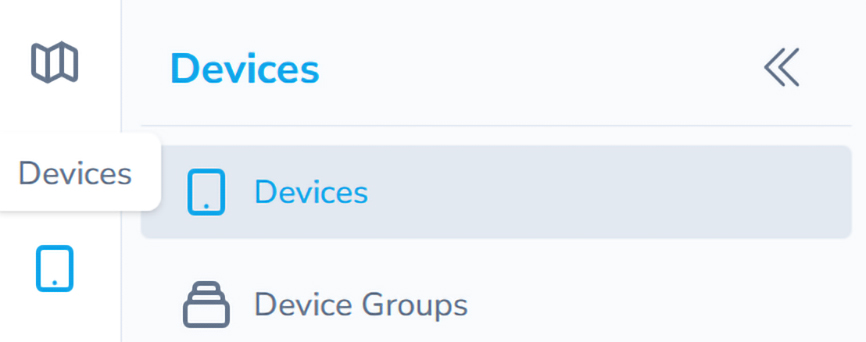

  2. Click on Devices in the menu bar and select Devices.
  3. All your devices will be listed with their ID, name, latest sensor reading, status, dashboard, model, and battery info.
  4. Enter the device name in the search bar to locate the device.
  5. Click on View to access the device details, groups, sensors, messages, and files.

2. View a Sensor Chart

  1. Go to the Ontoto Web Portal.
  2. Click on Devices in the menu bar and select Devices.
  3. All your devices will be listed with their ID, name, latest sensor reading, status, dashboard, model, and battery info.
  4. Enter the device name in the search bar to locate the device.
  5. Click on View Device Dashboard of particular device to access the graphical mode.
  6. All the sensors will be available with their corresponding channels.
  7. Click on a Sensor to view its chart.
  8. Click the Sensor Name to hide or show the view.
  9. Click the Line or Bar chart icon in the top right corner to change the chart format.
  10. Click on the Save as Image icon located in the top right corner to download the chart as an image.
  11. Click the Zoom icon in the top right corner to zoom in on the data, and click Zoom Reset to revert to the default view.
  12. Drag the Date Slider from the sides to choose a particular period.

To change any sensor name and output unit, and add configuration values for virtual sensors, refer Configure Sensor.

Note: To change any sensor name and output unit, and add configuration values for virtual sensors, refer Configure Sensor.

Chart Mode
  1. Click on Chart Mode to access all sensor charts.
  2. Click on View Chart of a particular sensor to view its chart.
  3. Click on Menu to print and download the chart as an image.
  4. Select a specific area to zoom in.
  5. Click on Drag Tool to move the chart position.
  6. Click on Reset  to reset the chart.
Group Chart
  1. Click on Group Chart to view the group chart.
  2. Click the Sensor Name to hide or show the view.
  3. Click on the Save as Image icon located in the top right corner to download the chart as an image.
  4. Click the Zoom icon in the top right corner to zoom in on the data, and click Zoom Reset to revert to the default view.
  5. Click on the Data View icon located in the top right corner to see the data in tabular format.
  6. Drag the Date Slider from the sides to choose a particular period.

3. Configure Sensor

This allows you to change any sensor name and output unit, and add configuration values for virtual sensors.

  1. Go to the Ontoto Web Portal.
  2. Click on Devices in the menu bar and select Devices.
  3. All your devices will be listed with their ID, name, latest sensor reading, status, dashboard, model, and battery info.
  4. Enter the device name in the search bar to locate the device.
  5. Click on View to access the device sensors.
Change Sensor Name and Unit
  1. Click on Edit to modify the selected sensor.
  2. Enter a new name if needed.
  3. Select the preferred output unit.
  4. Click on Update Sensor.
Disable Data Fault Check

If a sensor is damaged or disconnected and you want ignore the data fault to maintain the device status is active, you can disable the data fault check.

  1. Click on Edit to modify the selected sensor.
  2. Undo Data Fault Check if necessary.
  3. Click on Update Sensor.
Add configuration values for virtual sensor

A virtual sensor originates from a physical sensor and may need configuration values to calculate its data.

Add configuration values for Static Level

Once the level sensor is installed with the Ontoto device, you can generate static level data by entering configuration values into the system.

  1. Click on View to access the selected Static Level sensor.
  2. Click on Create SL Config.
  3. The values obtained from the Ontoto Connect App will be available at the top.
  4. Select a measuring point.
  5. Enter the dip, the dip taken at, and the sensor reading during the dip.
  6. Select a datum.
  7. Enter the distance from the datum to the measuring point.
  8. Click on Update SL Config.
  9. The data can be viewed in the Chart and downloaded using the CSV Generator.
Add configuration values for VW Static Level

Once the VW sensor is installed with the Ontoto device and you have added VW Sensor Calibration Values in the system to obtain the pressure data, you can generate VW static level data by entering configuration values into the system.

  1. Click on View to access the selected VW Static Level sensor.
  2. Click on Create SL Config.
  3. Enter the surface elevation from the datum and the depth from the surface to the sensor tip.
  4. Click on Update SL Config.
  5. The data can be viewed in the Chart and downloaded using the CSV Generator.
Add configuration values for Liquid Level

Once the Ontoto Razar device is installed, you can generate liquid level data by entering configuration values into the system.

  1. Click on View to access the selected Liquid Level sensor.
  2. Click on Create Liquid Level Config.
  3. The values obtained from the Ontoto Connect App will be available at the top.
  4. Enter .
  5. Click on Update Liquid Level Config.
  6. The data can be viewed in the Chart and downloaded using the CSV Generator.
Select Pulse Counter Usage

You will be able to select and update Rain Gauge 0.2 mm, 0.5 mm, or 1 mm Granularity for Ontoto Pulsar data logger. You can also select or update the pulse counter usage using the QR Code attached to the device.

  1. Click on View to access the selected Rainfall sensor.
  2. Click on Edit for Rainfall Config.
  3. Select the mm per pulse.
  4. Click on Update Rainfall Config.
  5. The data can be viewed in the Chart and downloaded using the CSV Generator.
FTP Data Feed

Create an FTP data feed for each sensor to send data to your system via FTP. If you do not have an FTP account on the Ontoto portal, refer FTP Account.

  1. Click on View to access the selected sensor.
  2. Click on Create FTP Data Feed.
  3. Select the account name.
  4. Enter the destination path.
  5. Select the data sending frequency, and file format.
  6. Enter the required information for the chosen file format if prompted.
  7. Enable Active.
  8. Click on Create FTP Data Feed.
Sensor Alarm Config

This allows the configuration of an alarm for each sensor, triggering email notifications when thresholds are exceeded.

  1. Click on View to access the selected sensor.
  2. Click on Create Sensor Alarm Config.
  3. Enter the name, high alarm threshold, low alarm threshold and hysteresis.
  4. Enable Email Notification Active and choose Email Notification Group or Create a Notification Email.
  5. Enable Alarm Active.
  6. Click on  Create Sensor Alarm Config.

4. Attach and view files

You can attach and view a file.

  1. Go to the Ontoto Web Portal.
  2. Click on Devices in the menu bar and select Devices.
  3. All your devices will be listed with their ID, name, latest sensor reading, status, dashboard, model, and battery info.
  4. Enter the device name in the search bar to locate the device.
  5. Click on View to access the files section.
  6. Click on Create File.
  7. Enter the description.
  8. Click on Choose File to attach a file.
  9. Click on  Create File to create, or Create & Add Another to create another one.
