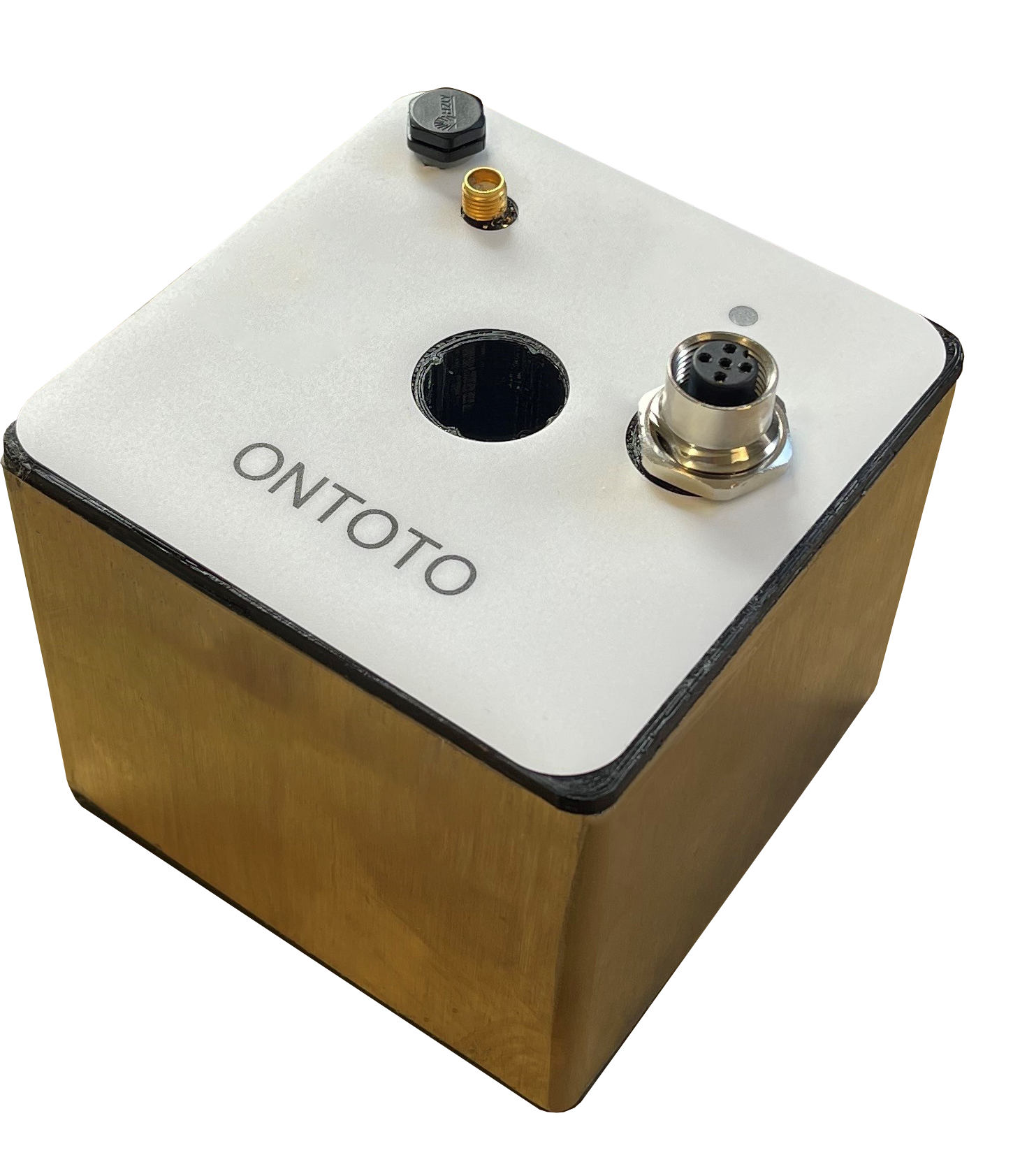

Ontoto Greyhound IP68

Built for the harshest conditions.

10+ years battery life. Rated to IP68. Fireproof.

The Ontoto Greyhound IP68 is the familiar Ontoto Greyhound Datalogger which provides ultra low powered performance and utilises the proven set up and functionality of the Ontoto Connect App but with more features. The fully encapsulated design means it is resistant to insect infestations making it maintenance free. Easily one of the most robust dataloggers on the market, Ontoto’s Greyhound IP68 Datalogger will perform in the harshest conditions without the need for regular in-field visits.

Product features

No on/off switch

10+ years battery life

Rated to IP68

Fireproof

In-built atmospheric pressure sensor for in head correction rated at 100m submersion which enables flood monitoring as part of your suite of parameters

Device configuration with BLE via Ontoto Connect Android or iOS App

Firmware updates via NB-IoT and BLE

Remote configuration by downlink messages through the Ontoto Web Portal

Compatibility with a range of intelligent digital sensors including water level, pH and pressure

Sampling and transmission periods ranging from as short as one minute, to as long as one week

Local alarming based on configurable thresholds

Custom packet to optimise data usage, resulting in significant reduction of transmission costs

Customisable firmware for different sensors upon request

The standard aerial is vandal resistant

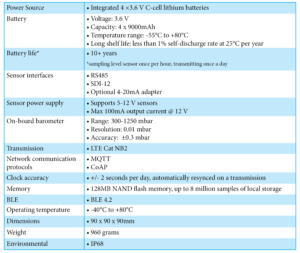

Power source

Integrated 4 × 3.6 V C-cell lithium batteries

Battery

Voltage: 3.6 V
Capacity: 4 × 9000 mAh
Temperature range: −55°C to +80°C
Long shelf life: less than 1% self-discharge rate at 25°C per year

Battery life*

10+ years
*Sampling level sensor once per hour, transmitting once a day

Sensor power supply

Supports 5–12 V sensors
Max 100 mA output current @ 12 V

Transmission

LTE Cat NB2

Network protocols

MQTT
CoAP

Clock accuracy

± 2 seconds per day, automatically re-synced on a transmission

On-board barometer

Range: 300–1250 mbar
Resolution: 0.01 mbar
Accuracy: ±0.3 mbar

Memory

128 MB NAND flash memory, up to 8 million samples of local storage

BLE

BLE 4.2

Operating temperature

−40°C to +80°C

Dimensions

90 × 90 × 90 mm

Weight

960 grams

Environmental

IP68

Sensor interfaces

RS-485  ·  SDI-12  ·  Optional 4–20 mA adapter

Certification

Designed to comply with the Australian Standards: AS/NZS 3820:2009 for low voltage battery powered devices.
