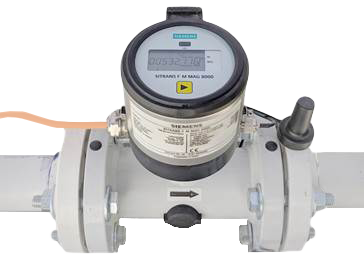

SatMag Water Metering Data Logger ​
Feature Description

Using this data logger, you will be able to monitor and manage your Siemens MAG8000 flow meter remotely once the installation has been completed.

  • Satellite connectivity.
  • Indefinite retention of sensor data stored in flash memory on board as a backup.
  • The default configuration has a 10 minute sample interval and daily reporting frequencies.
  • User customisable with site set up tools via Android and iOS app.
  • Mains powered with backup battery.
  • Light sensor for tamper detection.
Certification

The Ontoto SatMag data logger has been designed to comply with the Australian Standards:

  • AS/NZS 3820:2009 for low voltage battery powered devices.
  • Iridium Certification
Device Specifications
Product Features
  • Satellite connectivity via Iridium network
  • Sampling frequencies supported to as low as ten minutes
  • Fault detection including power interruptions
  • Remotely configurable by the end user via the iOS/Android application and Web Portal
  • OTA firmware updates via the phone application
  • Light sensor for tamper detection.
Technical Specifications
  • 6 µW typical power consumption when sleeping
  • Supports pulse input frequencies up to 100 Hz.
  • Operational temperature range: -20 to 80°C
Battery Specifications
  • The SatMag utilises a lithium-ion super capacitor:
  • Voltage(V):65~3.95
  • Weight(g):9g
