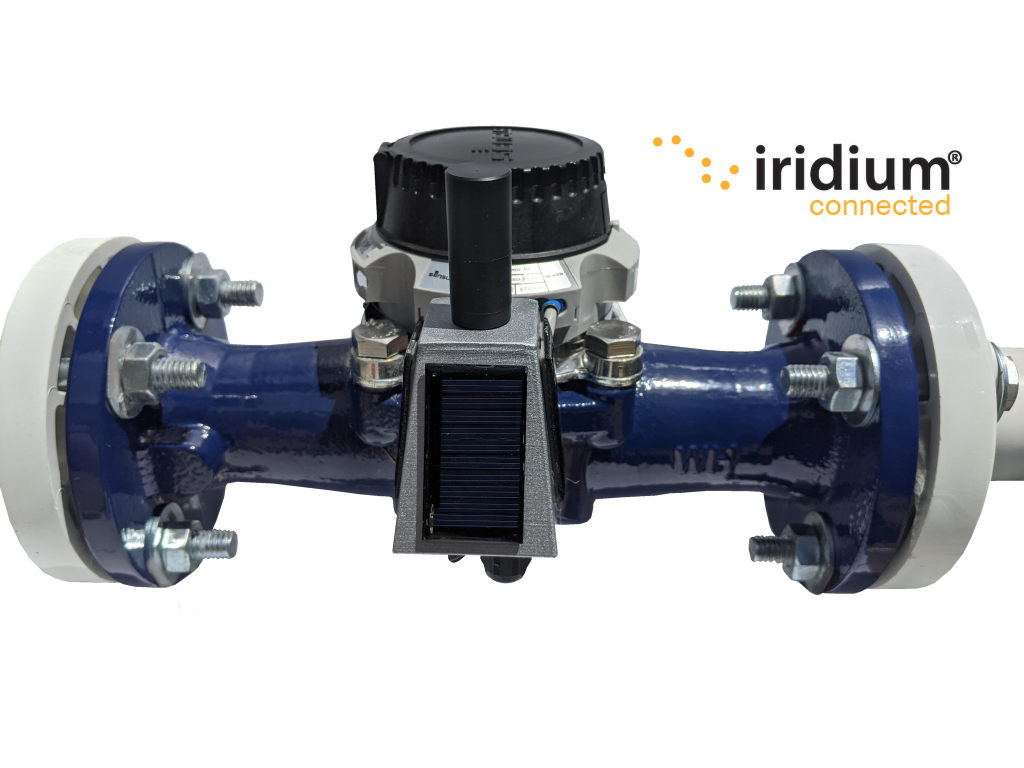

Ontoto Pulsar Satellite Water Metering Data Logger
Feature Description

Using this data logger, you will be able to monitor and manage your water meter remotely once the installation has been completed. With simplicity in mind there is only one toggle switch.

  • Satellite connectivity.
  • Sensor data stored in flash memory on board as a backup.
  • The default configuration has a 10 minute sample interval and daily reporting frequencies.
  • User customisable with site set up tools via Android and MAC iOS app.
  • Solar powered.
Certification

The Ontoto Pulsar data logger has been designed to comply with the Australian Standards:

  • AS/NZS 3820:2009 for low voltage battery powered devices.
  • Iridium Certification
Device Specifications
Product Features
  • Solar powered lithium-ion super capacitors.
  • Satellite connectivity via Iridium network
  • Sampling frequencies supported to as low as ten minutes
  • Remotely configurable by the end user via the iOS/Android application and Web Portal
  • OTA firmware updates via the phone application
Technical Specifications
  • 6 µW typical power consumption when sleeping
  • Supports pulse input frequencies up to 100 Hz.
  • Operational temperature range: -20 to 80°C
  • Dimensions: H: 105mm; W: 50mm; D: 60mm
  • Product weight: 140 grams
Battery Specifications
  • The Pulsar utilises a lithium-ion super capacitor:
  • Voltage(V):65~3.95
  • Weight(g):9g
  • Current(mAh\mA): 40
  • Max constant current(mA):1000mA
  • Operate Temp.(℃):-40~+85
  • End voltage(V):5V
